Home > Products > Pressure Measurement > Pressure Sensor > PD-210S Series Diffused Silicon Economy Pressure Transmitter
New

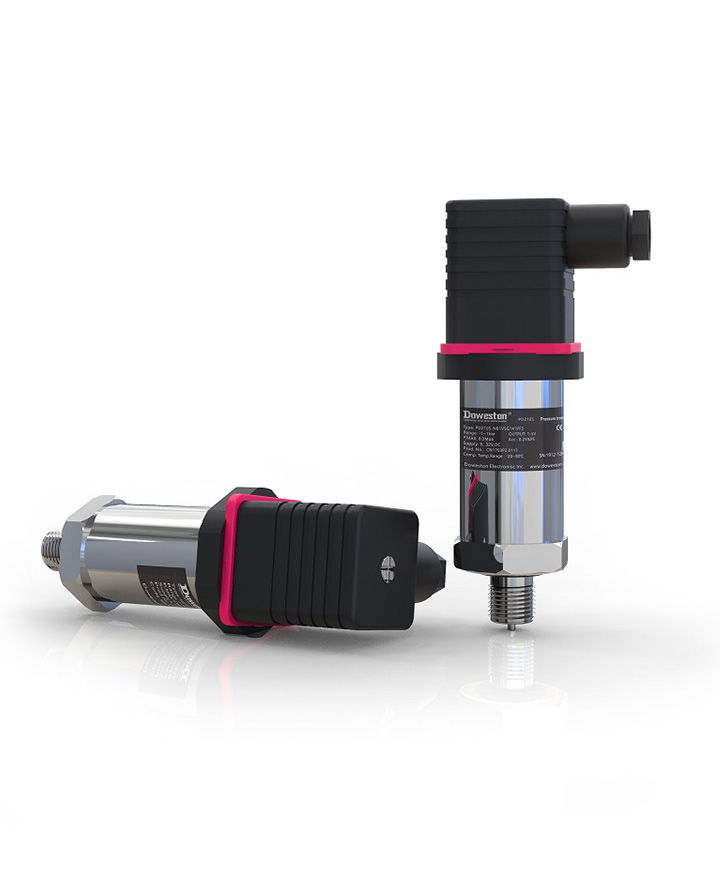

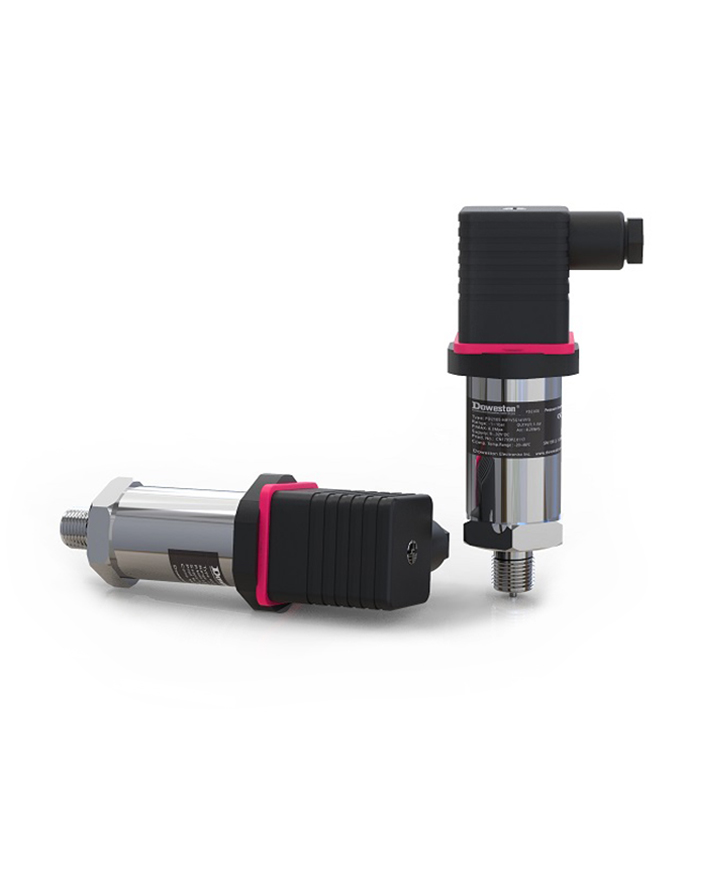

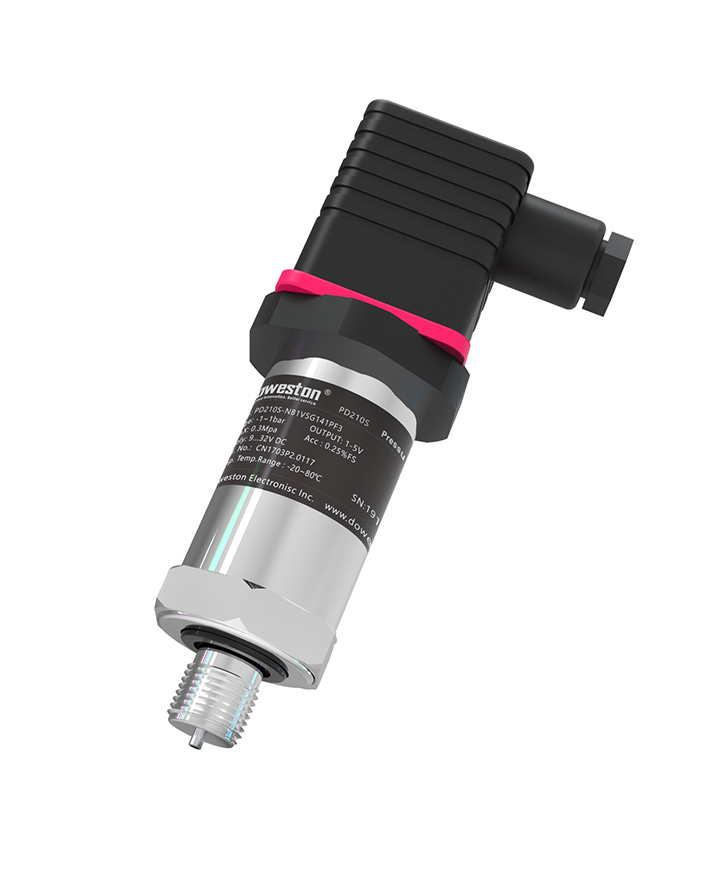

PD-210S diffused silicon economical pressure transmitter
It's routineMachinery and equipment, environmental protection projects pressureMeasurement
PD-210S diffused silicon economical pressure sensor uses ceramic piezoresistive sensor core, can convert pressure changes into linear standard current or voltage signals, withCost-effective features, suitable forwith a certainMildly corrosive fluids and gaseous media, Multiple output options, withThreaded, FlangedAnd other connection methods to meet the needs of different working conditions.
It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: -0.1-42MPa
■ Comprehensive accuracy: ±0.5%FS
■ diaphragm Material: stainless steel 316L
■ Operating temperature: -40-125℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.
■ Process connection: threaded, flanged
■ Protective connections: Horsmann connectors, direct wiring, waterproof glands
■ Seal: fluorine rubber (FKM)
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | -0.1-42MPa |
| Overall Accuracy | ±0.5%FS |
| Repeatability | ≤± 0.15%FS/year |
| Zero-point Thermal Drift | ±0.02FS/°C |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -40-125°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <100ms (10...90%FS) |
| Vibration resistance | ±20g 20-5000Hz |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | 316L stainless steel |
| Housing Material | Low copper aluminum alloy, stainless steel |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Terminal blocks, Horsmann connectors, |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | Fluororubber (FKM) |
| Mounting Type | Threaded, Flanged |
| Weight | Approx. 0.4 kg |
Application Areas:
■ PD-210S diffused silicon economical pressure transmitterWidely used in water plants, refineries, wastewater treatment plants, construction, light industry, machinery and other industrial sectors for measuring the pressure of liquids, gases and steam.
